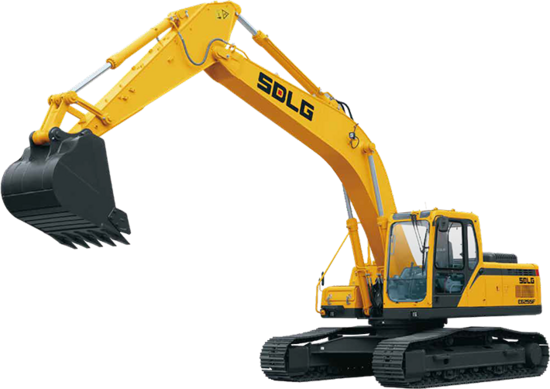

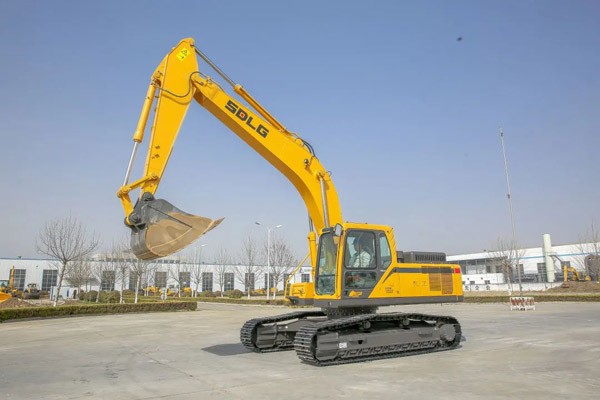

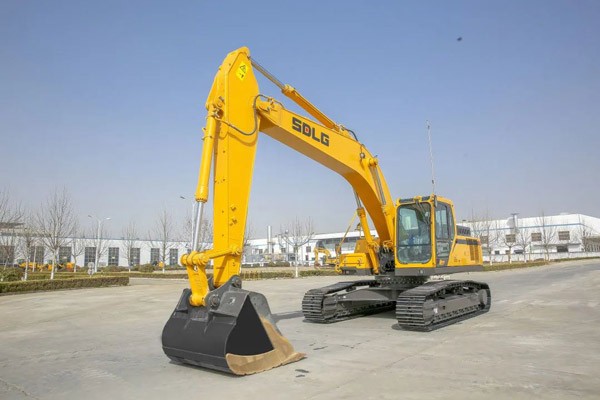

Shandong Lingong SDLG E6255F Excavator
export@zerchen.com
+8615806633868
Contact Us
FEATURES

Economy

The working mode is optimized, lowering the engine speed and reducing fuel consumption. It adopts positive flow control system and dual pump converging hydraulic system, which realize fast action speed and high efficiency.

Comfortable

The machine has good coordination of compound control movements. Multi-level vibration reduction and reduced noise make it comfortable to work in it.

Reliability

The core components come from world-renowned brands, with excellent quality. The structural parts have undergone multiple processes such as material selection, manufacturing and stress testing, with large bearing capacity, reliability and durability. It’s also equipped with multiple reliable designs, such as air intake filter, limp home, Action protection and fault self-diagnosis function.

Convenience

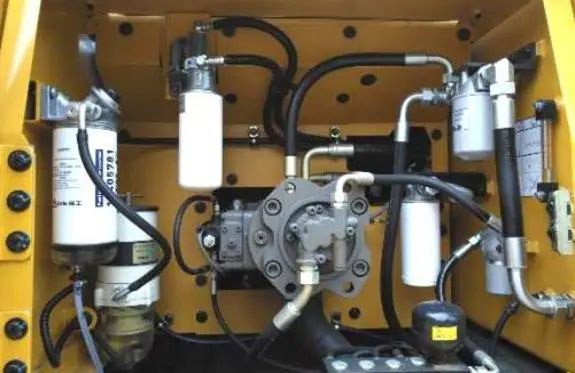

Large maintenance space and the central layout of filter, electrical devices


PARAMETERS
Operating weight(kg):25500
Bucket capacity(m³):1.50
Rated power(kW):153
Overall width(mm):3190
Overall height(mm):3040
Overall length(mm):4650
Engine model:BF6M1013-21T3R/4
Emission Standard:GB20891-2014
Max. excavation force(kN):176
Swing speed(r/min):11.3
Traveling speed(km/h):3.3/5.5
Max. digging radius(mm):10260
Max. digging depth(mm):6980
Max. digging height(mm):9690
Fuel tank capacity(L):470
