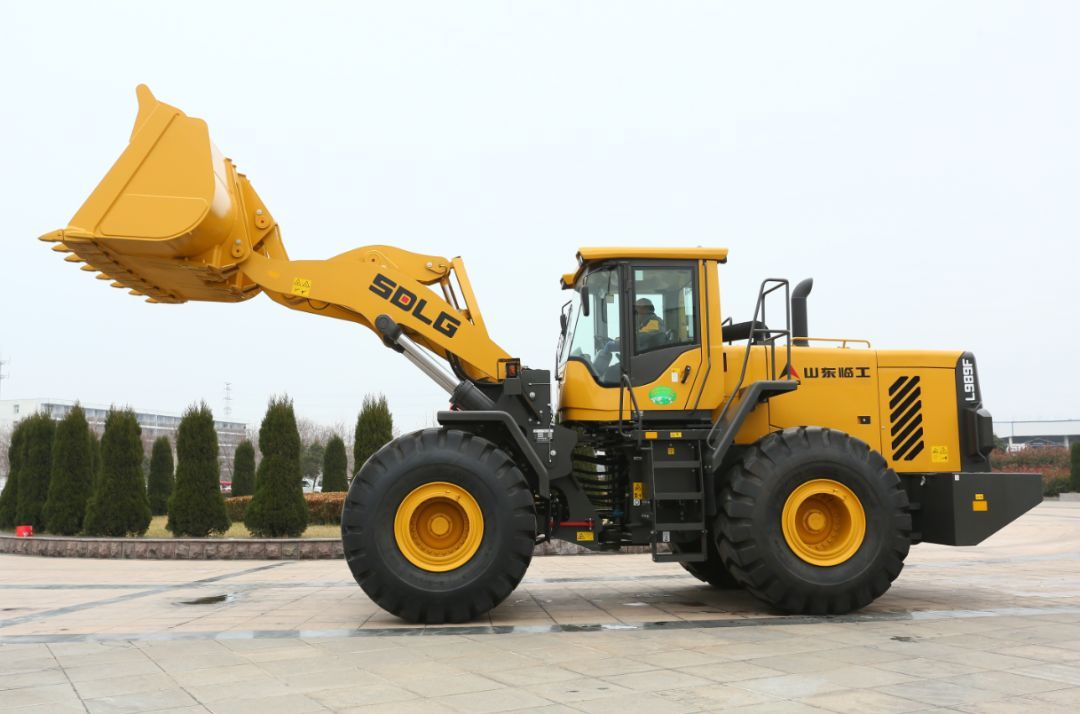

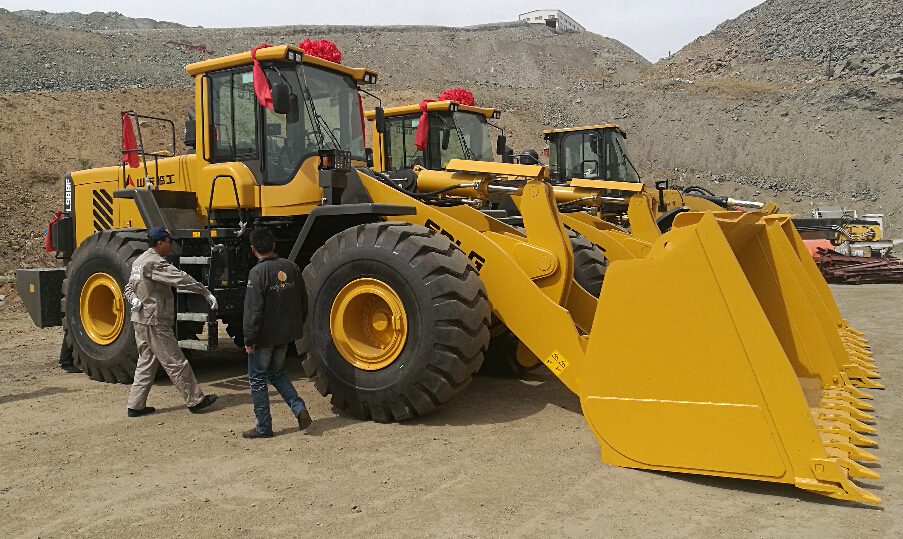

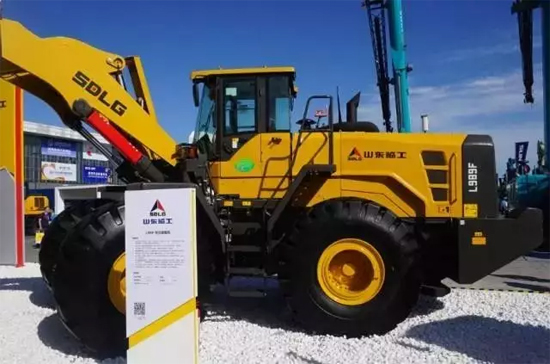

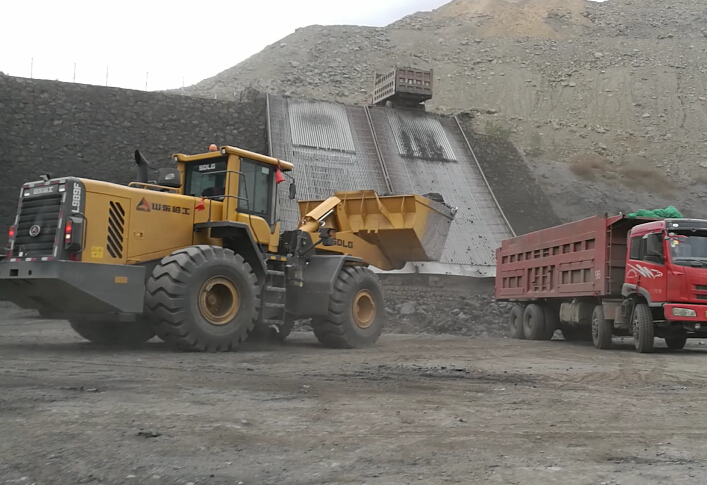

L989F is a large-tonnage Tier 3 wheel loader that is newly designed by SDLG. It is based on the core concept of "Reliability in Action", and is comprehensively improved with respect to design and manufacture, becoming more reliable and efficient.
● Imported D13 Tier III engine dedicated for SDLG machine.
● Axis-fixed electro-hydraulic transmission.
● SDLG patented technology: independent cooling system and drive axle compulsory cooling system
● Machine, engine and transmission are controlled by HIMI+EECU+VECU
● Box-typed frame structure with higher reliability
● FOPS&ROPS cab
PARAMETERS
Operating weight(kg)：27500
Bucket capacity(m³)：4.5
Rated load(kg)：8000
Length×Width×Height(mm)：9810x3490x3725
Wheel base(mm)：3550
Max.dumping height(mm)：3650
Dumping distance(mm)：1390
Steering angel(°)：38
Engine Model：SD130B
Rated power(kW)：251
Emission standard：China Phase III
Max.tractive force(kN)：220
Max.breakout force(kN)：230
Gears：Forward 4 reverse 4
Total time(s)：11.3
Fuel tank capacity(L)：380
