FEATURES

E6150F is an energy-saving, reliable and comfortable machine developed by SDLG. It is equipped with enhanced working device and optimized matching power hydraulic system, which is suitable for a variety of harsh working conditions.

● The original imported SD40B engine with low speed and high torque is supercharged and Intercooled to meet the T3 emission.

● It has the advantages of energy-saving, high sensitivity, high production efficiency.

● The walking system is driven by two speed self-switching walking motor, and the walking and rotary braking are wet braking, with stable performance and high reliability.

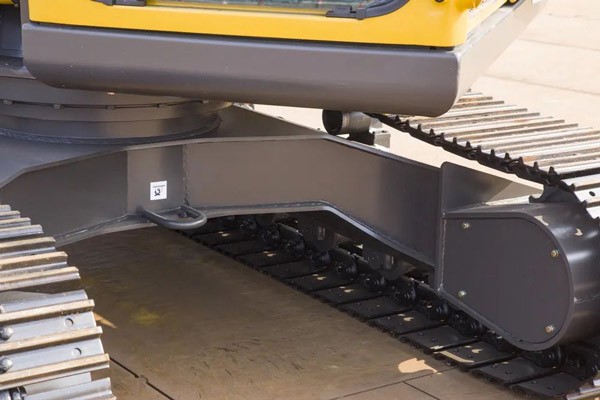

● The chassis of the whole machine is wider, and the upper frame of the whole machine is strengthened.

● The cab is spacious and has good sound insulation effect. It is equipped with three sunshade nets. Silicone oil rubber shock absorber is used to reduce vibration and impact.

● Equipped with EECU, VECU and IECU electronic control system. The whole machine has a variety of working modes to adapt to different working conditions, energy saving and high efficiency.

● Rich differentiated attachments: optional with hammer, and other working devices, accessories.


PARAMETERS
Operating weight(kg):13800
Bucket capacity(m³):0.60
Rated power(kW):80
Overall width(mm):2590
Overall height(mm):2830
Overall length(mm):7770
Engine model:BF4M20D-11T3R/4-B796
Emission Standard:China Phase III
Max. excavation force(kN):98.1
Swing speed(r/min):11
Traveling speed(km/h):3.2/5.5
Max. digging radius(mm):8330
Max. digging depth(mm):5530
Max. digging height(mm):8420
Fuel tank capacity(L):260
