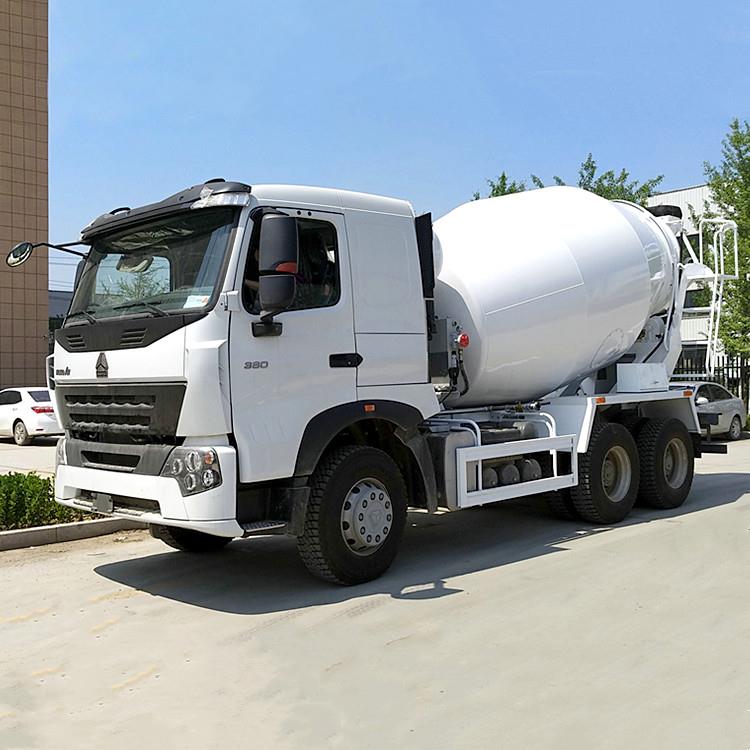

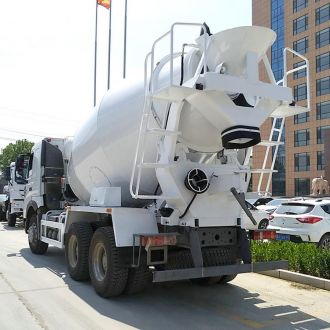

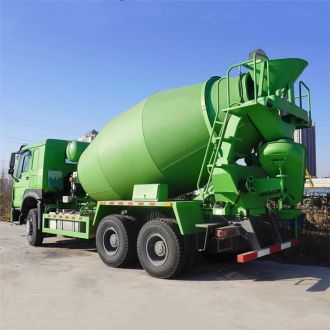

Cement Mixer Truck Description:

SINOTRUK HOWO A7 380 Concrete cement mixer truck suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business.

During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from taking up space.

Specification:

Driving type: LHD (RHD is optional)

Cabin: HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine:

Make: SINOTRUK Diesel 4-stroke direct injection diesel engine

Engine model: WD615.69, Euro 2, 336 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission: HW19710, 10F & 2R with PTO

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance

Front axle: HF9,1×9000 KGS, Steering with doubleT-cross section beam

Rear axle: HC16, 2×16000 KGS, Pressed axle housing, central single reduction with hub reduction, with differential locks between wheels and axles.

Ratio: 4.42

Propeller Shaft: Double universal joint propeller shaft with gear-shaped coupling flange

Chassis:

Frame: U-profile parallel ladder frame with a section of 300x80x8mm, reinforced subframe all cold riveted cross members

Front suspension: 10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake:

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on the front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics:

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres: 315/80R22.5, tubless tyre with one spare tyre

Fuel Tank:400L

Mixer Body:

Volume: 10 CBM;

Mixer Pump: Eton (USA Brand);

Motor: Eton (USA Brand);

Reducer: Bonfiglioli (Italy Brand);
