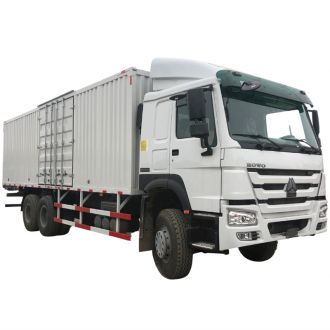

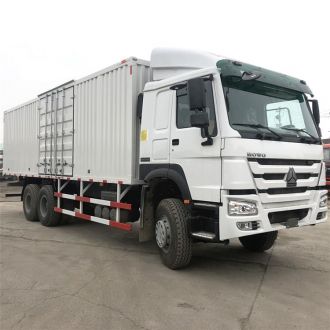

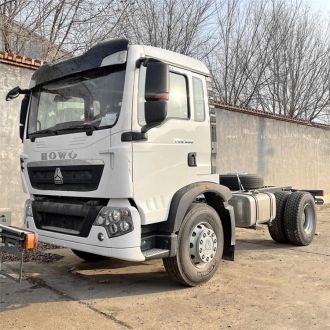

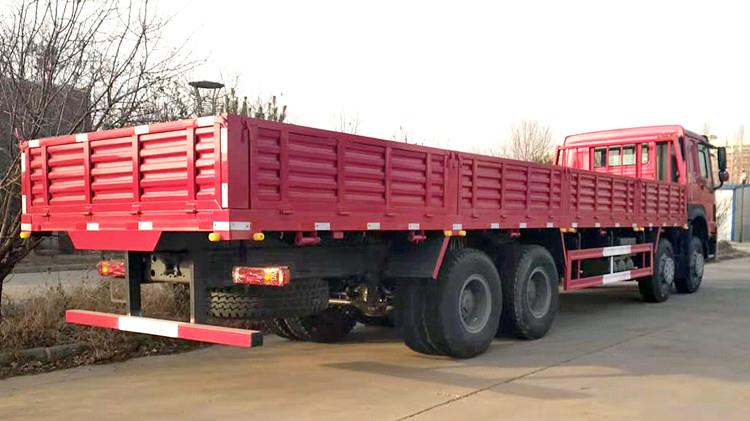

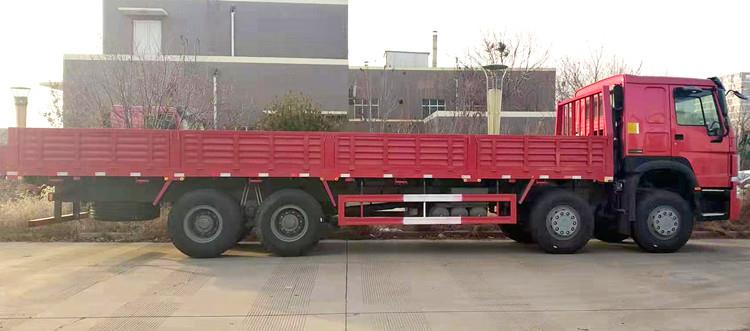

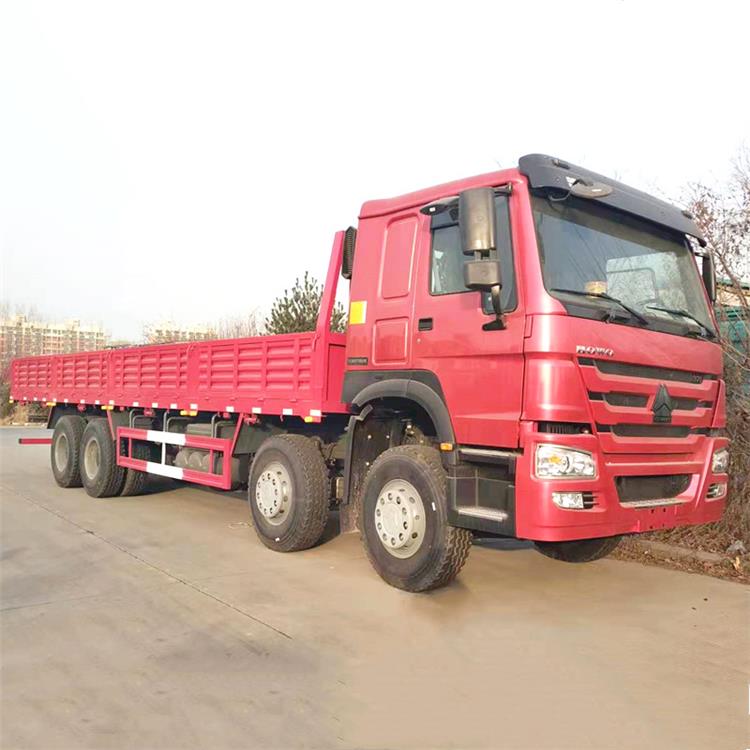

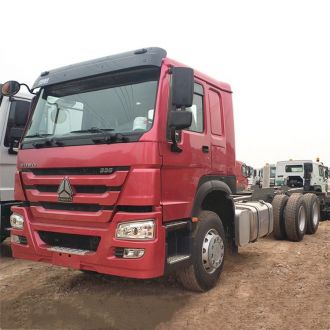

Howo 8x4 Cargo Truck Description:

As an important member of the logistics transportation market, howo 371 cargo trucks play an increasingly important role in the fields of agricultural products, daily necessities, express delivery, and cold chain transportation.

This howo 8x4 cargo truck is loved by many African customers because of its large cargo capacity.

In order to meet the market demand, SINOTRUK has launched a variety of competitive truck models through the continuous upgrading of products and services to meet the diverse needs of customers.

Howo 8x4 Cargo Truck Specification:

MODEL: ZZ1317N3867A

ENGINE:

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: WD615.47, Euro 2, 371 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

TRANSMISSION: HW19710, 10F & 2R

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

FRONT AXLE: HF9, 2x9000 KGS. Steering with double T-cross section beam

REAR AXLE: HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:4.42

STEERING: ZF power steering, model ZF8118, hydraulic steering with power assistance

WHEELS&TYRES: 12.00R22.5, tubeless tyres with one spare tyre

CARGO BODY: 8600x2300x600mm

OVERALL DIMENSION: 11600*2550*3400 mm

DRIVER CAB:

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

PROPELLER SHAFT:

Double universal joint propeller shaft with gear-shaped coupling flange

CHASSIS:

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

BRAKE:

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

ELECTRICS:

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

FUEL TANK: 400L
