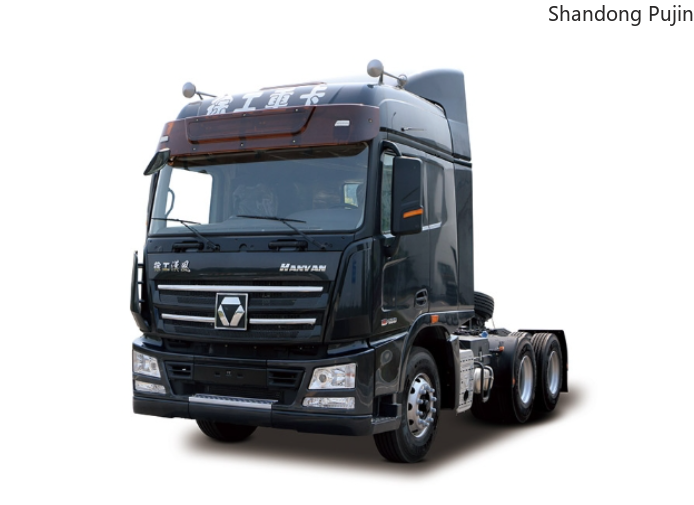

XCMG Tractor Truck HANVAN G7 XGA4250D3WC (SC12E430Q3B) 6x4
export@zerchen.com
+8615806633868
Contact Us

Drive Type:6×4

Kerb Mass(kg):11260
GVW(kg):120000


PRODUCT FEATURE

As the product with great concentriation to develop, the tractor is the most successfully products amonong Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.


PARAMETERS

ItemUnitParameter
Drive Type-6×4
Kerb Masskg11260
GVWkg120000
Max. Speedkm/h65
Min. Turning Diameterm17
Grade Ability-≥20%
Fuel TankL600
Dimensionmm6810×2550×3605
Wheelbasemm3200+1400
Min. Clearancemm280
Approach Angle-18°
Departure Angle-46°
Cabin Model-G7LH
Left/Right Driving-LHD
AC-Optional
Person Allowed in-2,3
Engine Model-SC12E430Q3B
Emission Standard-EUR II
DisplacementL11.8
Output PowerKW316
Max Torque Speedkm/h2100
Transmission Model-12JSD180T
PTO-Optional
Front Axle Model-7.5T
Rear Axle Model-16T
Main Reducer Ratio-5.92
Rim-8.50V-20
Tire-12.00R20-18PR
