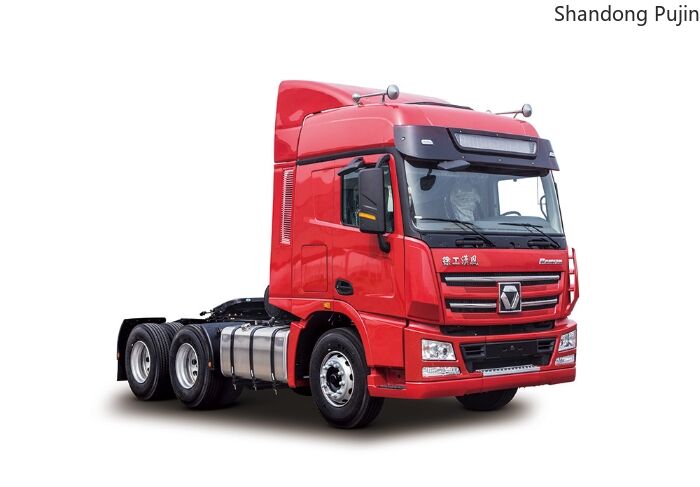

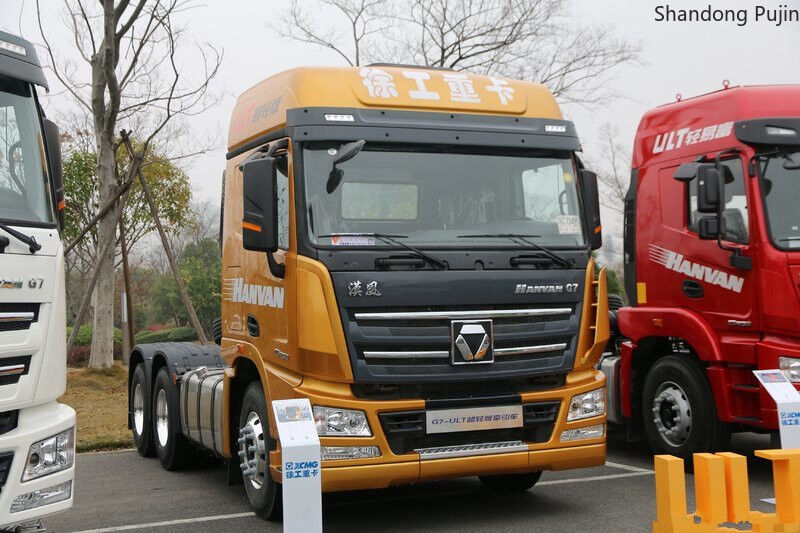

XCMG Tractor Truck HANVAN G7 XGA4250D3WC 6x4
export@zerchen.com
+8615806633868
Contact Us

Drive Type:6×4

Kerb Mass(kg):10400
GVW(kg):90000


PRODUCT FEATURE

As the product with great concentriation to develop, the tractor is the most successfully products among Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.


PARAMETERS

ItemUnitParameter
Drive Type-6×4
Kerb Masskg10400
GVWkg90000
Max. Speedkm/h90
Min. Turning Diameterm14
Grade Ability-≥25%
Fuel TankL600
Dimensionmm6760×2500×3885
Wheelbasemm3200+1350
Min. Clearancemm250
Approach Angle-18°
Departure Angle-52°
Cabin Model-G7LHR/G7LMR
Left/Right Driving-RHD
AC-Optional
Person Allowed in-2
Engine Model-WP12.430N
Emission Standard-EUR II
DisplacementL11.596
Output PowerKW316
Max Torque Speedkm/h2060
Transmission Model-12JSD200TA+FHB320B
PTO-Optional
Front Axle Model-7.5T
Rear Axle Model-16T
Main Reducer Ratio-3.866/4.266/4.769
Rim-9.00V-22.5
Tire-295/80R22.5-18PR
