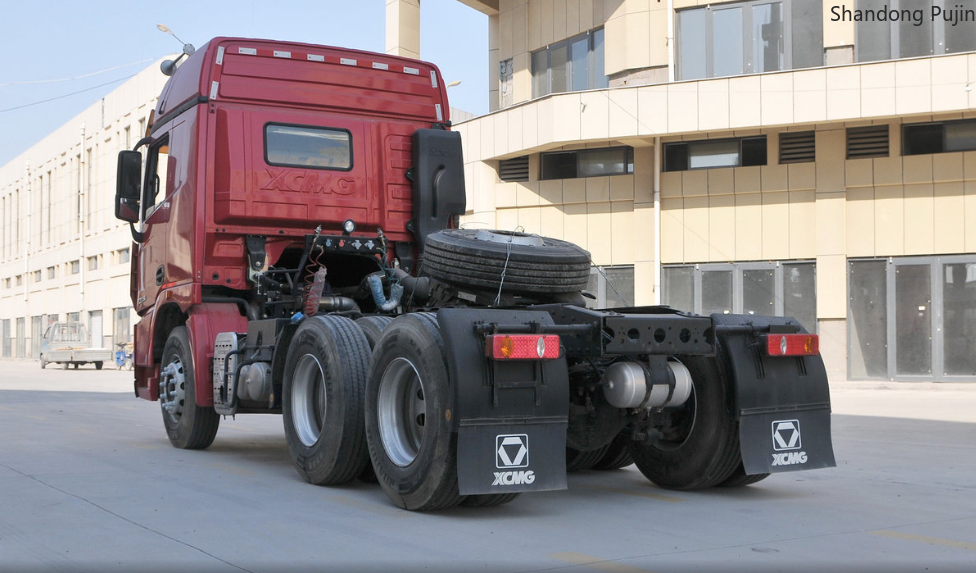

XCMG Tractor Truck HANVAN G7 XGA4250D3WB (WP12.430N) 6x4
export@zerchen.com
+8615806633868
Contact Us

Drive Type:6×4

Kerb Mass(kg):9184
GVW(kg):55000


PRODUCT FEATURE

As the product with great concentriation to develop, the tractor is the most successfully products among Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.


PARAMETERS

ItemUnitParameter
Drive Type-6×4
Kerb Masskg9184
GVWkg55000
Max. Speedkm/h90
Min. Turning Diameterm12.5
Grade Ability-≥18%
Fuel TankL400
Dimensionmm6760×2500×3864
Wheelbasemm3200+1350
Min. Clearancemm200
Approach Angle-17°
Departure Angle-55°
Cabin Model-G7LHR / G7LMR
Left/Right Driving-RHD
AC-Optional
Person Allowed in-2
Engine Model-WP12.430N
Emission Standard-EUR II
DisplacementL11.596
Output PowerKW316
Max Torque Speedkm/h2060
Transmission Model-12JSD200TA
PTO-Optional
Front Axle Model-7.5T
Rear Axle Model-16T
Main Reducer Ratio-3.866/4.266
Rim-9.00V-22.5
Tire-295/80R22.5-18PR
