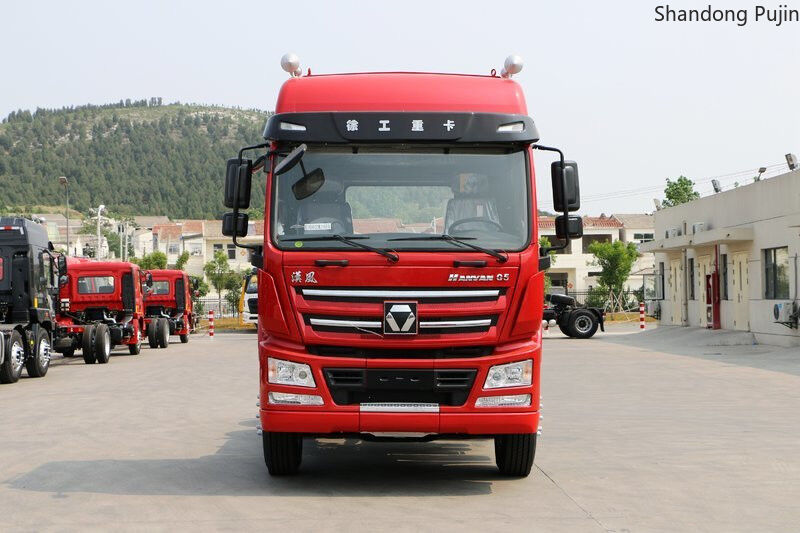

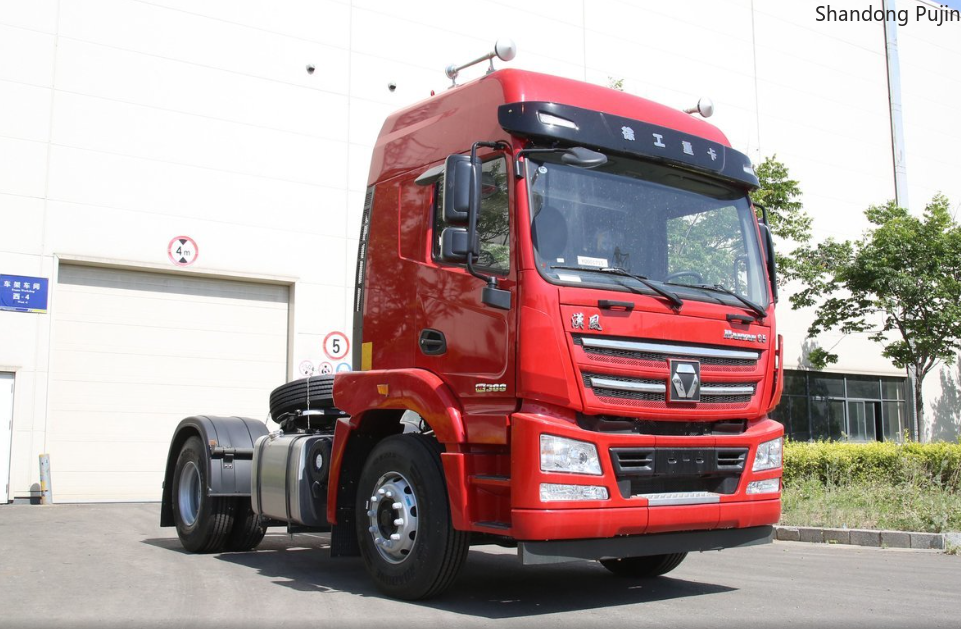

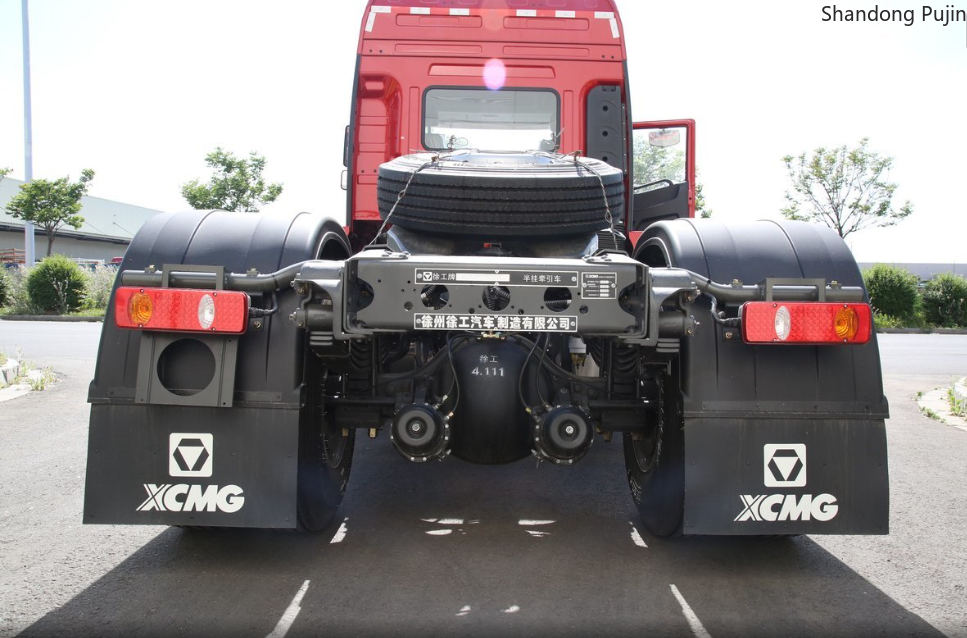

XCMG Tractor Truck HANVAN G5 XGA4181D5NA 4x2
export@zerchen.com
+8615806633868
Contact Us

Drive Type:4×2

Kerb Mass(kg):6568
GVW(kg):40000


PRODUCT FEATURE

As the product with great concentriation to develop, the tractor is the most successfully products amonong Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.


PARAMETERS

ItemUnitParameter
Drive Type-4×2
Kerb Masskg6568
GVWkg40000
Max. Speedkm/h91
Min. Turning Diameterm13
Grade Ability-≥30%
Fuel TankL400
Dimensionmm5985×2547×3785
Wheelbasemm3600
Min. Clearancemm258
Approach Angle-19°
Departure Angle-45°
Cabin Model-G5LH
Left/Right Driving-LHD
AC-Optional
Person Allowed in-2,3
Engine Model-WP10.350E53
Emission Standard-EUR II
DisplacementL9.726
Output PowerKW257
Max Torque Speedkm/h1600
Transmission Model-10JSD160
PTO-Optional
Front Axle Model-5.5T
Rear Axle Model-485
Main Reducer Ratio-3.7/3.364
Rim-22.5×9.00
Tire-12R22.5-18PR
