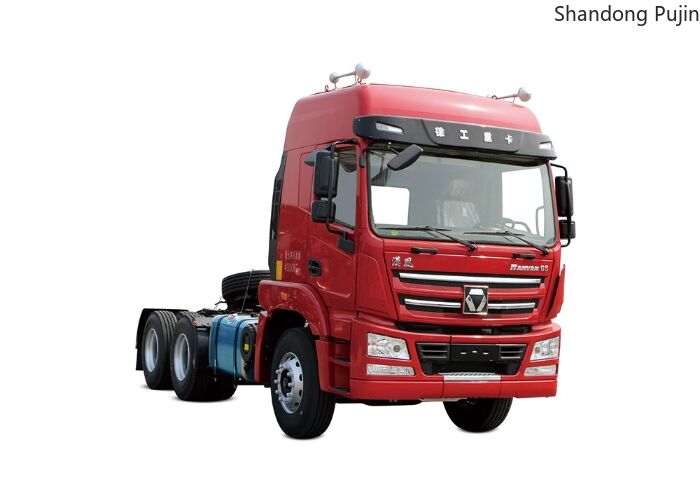

XCMG Tractor Truck HANVAN G5 NXG4250D5NC (WP12.430E50) 6×4
export@zerchen.com
+8615806633868
Contact Us

Drive Type:6×4

Kerb Mass(kg):8429
GVW(kg):60000


PRODUCT FEATURE

As the product with great concentriation to develop, the tractor is the most successfully products amonong Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.


PARAMETERS

ItemUnitParameter
Drive Type-6×4
Kerb Masskg8429
GVWkg60000
Max. Speedkm/h85
Min. Turning Diameterm14.8
Grade Ability-≥35%
Fuel TankL600
Dimensionmm6845×2550×3745
Wheelbasemm3300+1350
Min. Clearancemm234
Approach Angle-18°
Departure Angle-46°
Cabin Model-G5LH
Left/Right Driving-LHD
AC-Optional
Person Allowed in-2
Engine Model-WP12.430E50
Emission Standard-EUR II
DisplacementL11.596
Output PowerKW316
Max Torque Speedkm/h2060
Transmission Model-12JSD200TA-B
PTO-Optional
Front Axle Model-5.5T
Rear Axle Model-11.5T
Main Reducer Ratio-3.7/4.111
Rim-22.5×9.00
Tire-12R22.5-18PR
