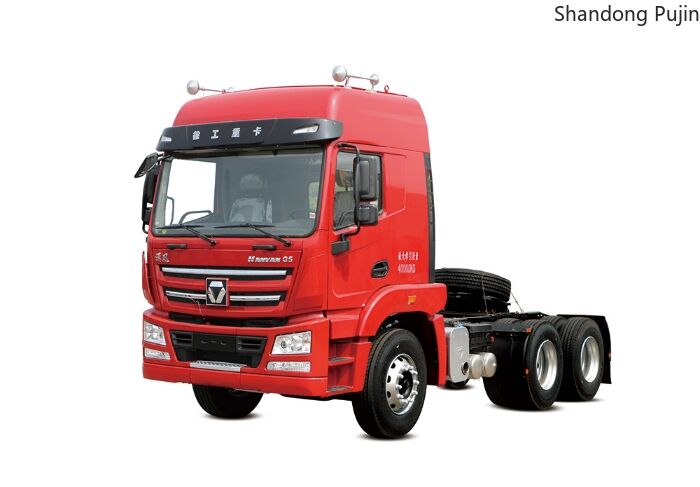

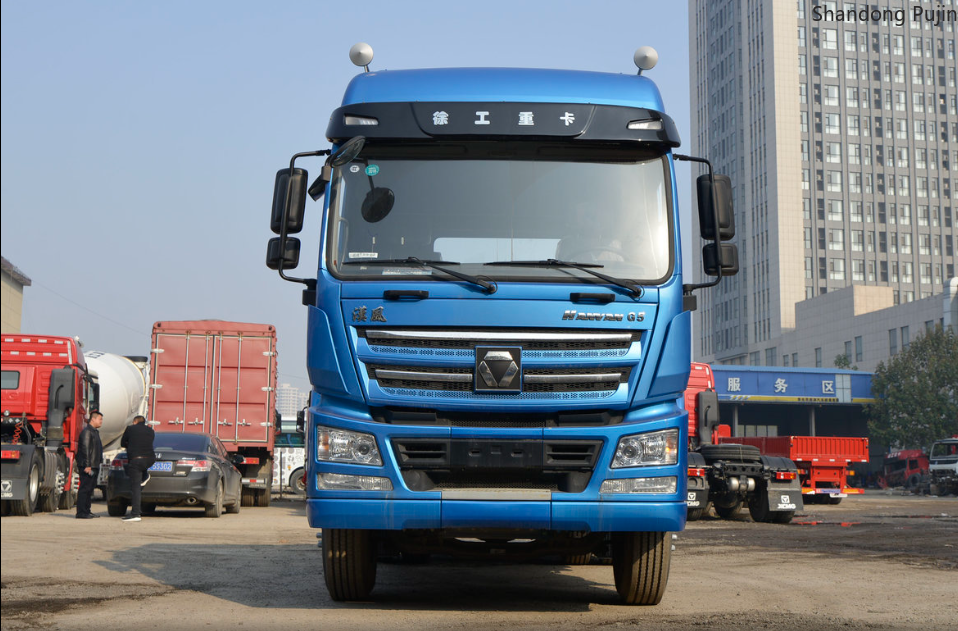

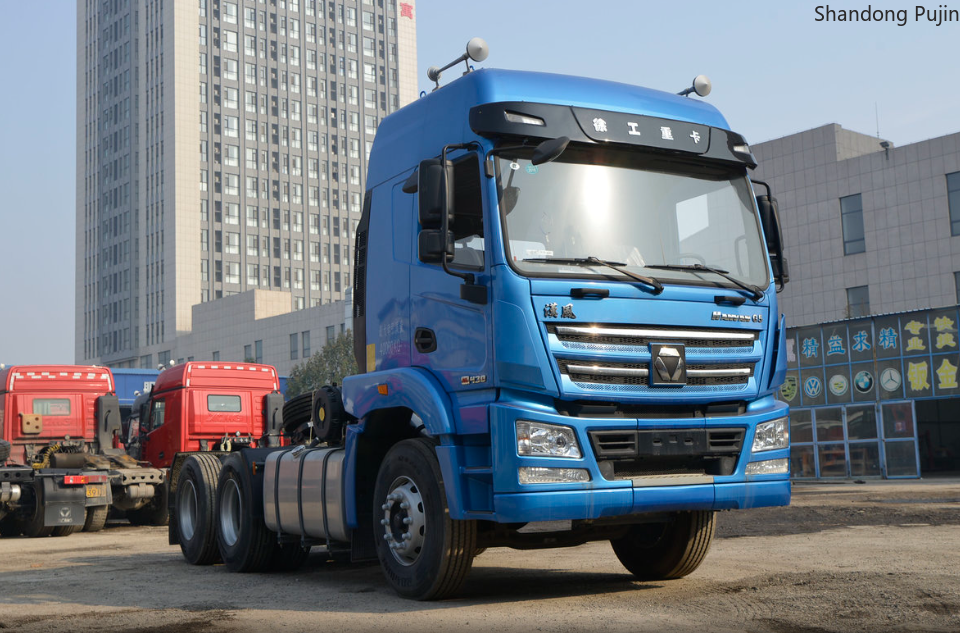

XCMG Tractor Truck HANVAN G5 NXG4250D5NC (WP10H375E50) 6×4
export@zerchen.com
+8615806633868
Contact Us

Drive Type:6×4

Kerb Mass(kg):8429
GVW(kg):50000


PRODUCT FEATURE

As the product with great concentriation to develop, the tractor is the most successfully products amonong Chinese truck industry. In terms of technology, we cooperate with international cutting-edge technology, and equip with the most advanced and intelligent manufaturing system, Which lead to higher safety, comfortability, reliability and economy efficiency, the products are standing out in the Chinese high-end logistics market.


PARAMETERS

ItemUnitParameter
Drive Type-6×4
Kerb Masskg8429
GVWkg50000
Max. Speedkm/h85
Min. Turning Diameterm14.8
Grade Ability-≥35%
Fuel TankL600
Dimensionmm6845×2550×3745
Wheelbasemm3300+1350
Min. Clearancemm234
Approach Angle-18°
Departure Angle-46°
Cabin Model-G5LH
Left/Right Driving-LHD
AC-Optional
Person Allowed in-2
Engine Model-WP10H375E50
Emission Standard-EUR II
DisplacementL9.5
Output PowerKW276
Max Torque Speedkm/h1800
Transmission Model-12JSD200TA
PTO-Optional
Front Axle Model-5.5T
Rear Axle Model-435
Main Reducer Ratio-3.7/4.111
Rim-22.5×9.00
Tire-12R22.5-18PR
